Interior_light_hmi_config
Hmi ambient colors bitmask
3FFFFFFF
Hmi contour colors bitmask
3FFFFFFF
Hmi ambient colors fod bitmask
3FFFFFFF
Hmi contour colors fod bitmask
3FFFFFFF
Hmi setup set 1
6
Hmi setup set 2
7
Hmi setup set 3
15
Hmi setup set 4
5
Hmi setup set 5
FF
Hmi setup set 6
FF
Hmi setup set 7
FF
Hmi setup set 8
FF
Hmi setup members set 1 byte 1
0
Hmi setup members set 1 byte 2
14
Hmi setup members set 1 byte 3
0
Hmi setup members set 1 byte 4
0
Hmi setup members set 2 byte 1
0
Hmi setup members set 2 byte 2
0
Hmi setup members set 2 byte 3
20
Hmi setup members set 2 byte 4
0
Hmi setup members set 3 byte 1
0
Hmi setup members set 3 byte 2
0
Hmi setup members set 3 byte 3
10
Hmi setup members set 3 byte 4
0
Hmi setup members set 4 byte 1
4
Hmi setup members set 4 byte 2
0
Hmi setup members set 4 byte 3
0
Hmi setup members set 4 byte 4
0
Hmi setup members set 5 byte 1
0
Hmi setup members set 5 byte 2
0
Hmi setup members set 5 byte 3
0
Hmi setup members set 5 byte 4
0
Hmi setup members set 6 byte 1
0
Hmi setup members set 6 byte 2
0
Hmi setup members set 6 byte 3
0
Hmi setup members set 6 byte 4
0
Hmi setup members set 7 byte 1
0
Hmi setup members set 7 byte 2
0
Hmi setup members set 7 byte 3
0
Hmi setup members set 7 byte 4
0
Hmi setup members set 8 byte 1
0
Hmi setup membevvvrs set 8 byte 2
0
Hmi setup members set 8 byte 3
0
Hmi setup members set 8 byte 4
0


cairus

Active Member
Jun 4, 2024
688
212
Hmi setup members multi color byte 1
4
Hmi setup members multi color byte 2
14
Hmi setup members multi color byte 3
20
Hmi setup members multi color byte 4
0
Hmi config linked zone illumination set 1
0
Hmi config linked zone illumination set 2
0
Hmi config linked zone illumination set 3
0
Hmi config linked zone illumination set 4
0
Hmi config linked zone illumination set 5
0
Hmi config linked zone illumination set 6
0
Hmi config linked zone illumination set 7
0
Hmi config linked zone illumination set 8
0
Hmi config timer hmi preview
0 s
Hmi config member top color scheme 1
0
Hmi config member center top color scheme 1
0
Hmi config member center color scheme 1
0
Hmi config member center bottom color scheme 1
0
Hmi config member bottom color scheme 1
0
Hmi config member top color scheme 2
0
Hmi config member center top color scheme 2
0
Hmi config member center color scheme 2
0
Hmi config member center bottom color scheme 2
0
Hmi config member bottom color scheme 2
0
Hmi config member top color scheme 3
0
Hmi config member center top color scheme 3
0
Hmi config member center color scheme 3
0
Hmi config member center bottom color scheme 3
0
Hmi config member bottom color scheme 3
0


cairus

Active Member
Jun 4, 2024
688
212
Hmi config member top color scheme 4
0
Hmi config member center top color scheme 4
0
Hmi config member center color scheme 4
0
Hmi config member center bottom color scheme 4
0
Hmi config member bottom color scheme 4
0
Hmi config member top color scheme 5
0
Hmi config member center top color scheme 5
0
Hmi config member center color scheme 5
0
Hmi config member center bottom color scheme 5
0
Hmi config member bottom color scheme 5
0
Hmi config member top color scheme 6
0
Hmi config member center top color scheme 6
0
Hmi config member center color scheme 6
0
Hmi config member center bottom color scheme 6
0
Hmi config member bottom color scheme 6
0
Hmi config member top color scheme 7
0
Hmi config member center top color scheme 7
0
Hmi config member center color scheme 7
0
Hmi config member center bottom color scheme 7
0
Hmi config member bottom color scheme 7
0
Hmi config member top color scheme 8
0
Hmi config member center top color scheme 8
0
Hmi config member center color scheme 8
0
Hmi config member center bottom color scheme 8
0
Hmi config member bottom color scheme 8
0
Hmi config fixed color play of colors
2
Hmi door contact
active


cairus

Active Member
Jun 4, 2024
688
212
Hmi menu ambient lighting
active
Hmi ambient color
active
Hmi contour color
active
Hmi ambient profile 1
active
Hmi ambient profile 2
not active
Hmi ambient profile 3
active
Hmi ambient profile 4
active
Hmi ambient profile 5
active
Hmi ambient profile 6
active
Hmi ambient profile 7
active
Hmi ambient profile 8
active
Hmi fpa dependency
not active
Hmi functional ambience lighting
not active
Hmi play of colors
not active
Hmi functional ambiance lighting list
active
roof console door contact
active
Hmi config hmi preview
not active
Hmi Display Color light function
1
Hmi adaption customer wish IlluminationSet 1
64
Hmi adaption customer wish IlluminationSet 2
64
Hmi adaption customer wish IlluminationSet 3
64
Hmi adaption customer wish IlluminationSet 4
64
Hmi adaption customer wish IlluminationSet 5
64
Hmi adaption customer wish IlluminationSet 6
64
Hmi adaption customer wish IlluminationSet 7
64
Hmi adaption customer wish IlluminationSet 8
64

Sep 19, 2024
9
0
Sorry, what we can do with this? Ive seen some people trying this codes in H56 HW, but they dont seem to be working, maybe its because all they posts Ive seen are from 2022 and before? And now with 1896 and 19XX they work?

Thanks and sorry for my english, im completely new in this topics :(

Nov 27, 2023
4
0
Lo hacen, como se puede ver en algunas publicaciones de su trabajo, pero lamentablemente no comparten NADA sobre cómo lo hacen.


doBelieve me, I know what I'm talking about... My car is from September 2020 and look, not even they know how to do this.

Sep 19, 2024
9
0


doBelieve me, I know what I'm talking about... My car is from September 2020 and look, not even they know how to do this.

Wow look that effects… I hope I can do it in my nov 2020 mk4…in my case vagretrofits said they need to swap the “led module” which controls the colors, and then enable the additional 20 colors via coding, 450€

I sent this pic from my info system


Its a shame nobody knows or tell how to do this, but I hope in some future we learn how to.


mrtndbs

Active Member
Sep 7, 2024
26
2
It works...
Could you share the coding for the Virtual Cockpit - side options (changeable options such as temps on left and g-force levels on right etc..) appearing with black background instead of blue on a Seat vehicle? I thought the black sides are only available on a Cupra?


cairus

Active Member
Jun 4, 2024
688
212

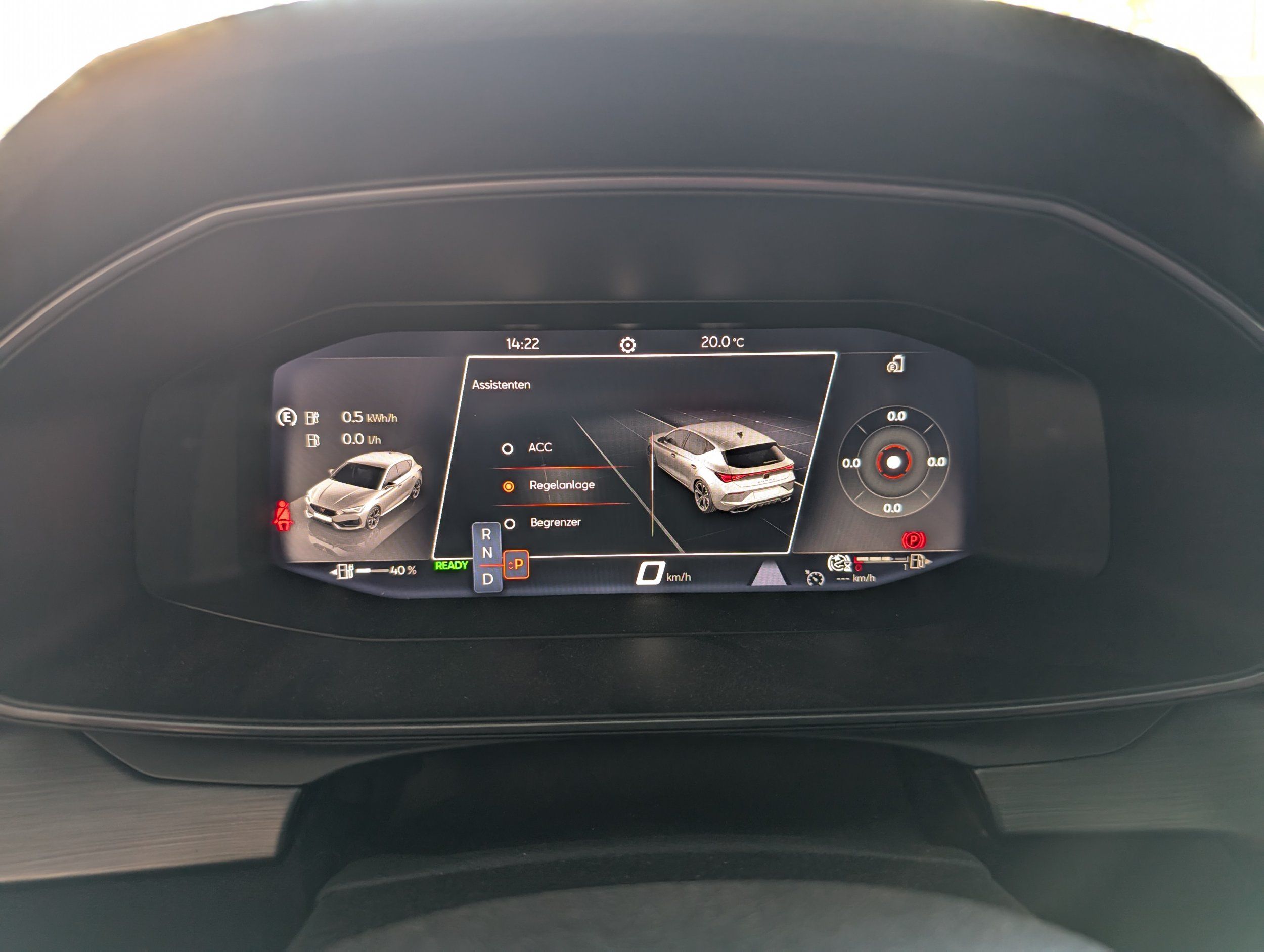

sorry, I really overlooked that Cupra and Seat are separate. 😞 but I have a Seat or Cupra Leon available almost every day. I'll look. The picture in my post is a Cupra, if you look closely at the picture you can see that too


mrtndbs

Active Member
Sep 7, 2024
26
2
sorry, I really overlooked that Cupra and Seat are separate. 😞 but I have a Seat or Cupra Leon available almost every day. I'll look. The picture in my post is a Cupra, if you look closely at the picture you can see that too
That's correct, it does show up as Cupra model. That is a codable option, though, I have coded a Cupra model showing on my VC (on a Seat Leon FR) purely because setting the model to Cupra allows for additional views of the VC.


cairus

Active Member
Jun 4, 2024
688
212
You still have blue? What does it say in STG 17 under customization under the item "Tachometer Color"?


mrtndbs

Active Member
Sep 7, 2024
26
2
You still have blue? What does it say in STG 17 under customization under the item "Tachometer Color"?
Yeah sadly still remains blue. OBD11 won’t allow me to go into tachometer color, function not available. I guess that’s the answer, it can’t be changed.


KoNG

Active Member
Jul 27, 2016
518
109
London
Still here! :thumbup:

I am using the IOS version too and it works ok for me, like Tell said its very trial and error to see what does and doest work. I have to have my bonnet open to do any coding on mine or it just fails. Some items I'm trying are a lap timer etc which enable but don't show up on the digital dash or info screen, either I can't find them or I haven't properly turned them on haha!

But OBDeleven is handy for reading errors (which these cars do get a lot of but I wont go into that haha!) But yes, Pro version every time and its worth it just for what I and others have found out.

I had read that end of march there should have been something sorted between OBD and VW group about sorting out access to the modules. I think this is in the works but I'm not sure where the current progress is?
The lap timer is hidden under the Cupra view only in the middle where is your speed display if you scroll the right menu wheel on your steering it will show up 😉
