Folding mirrors wiring

[mmisch]

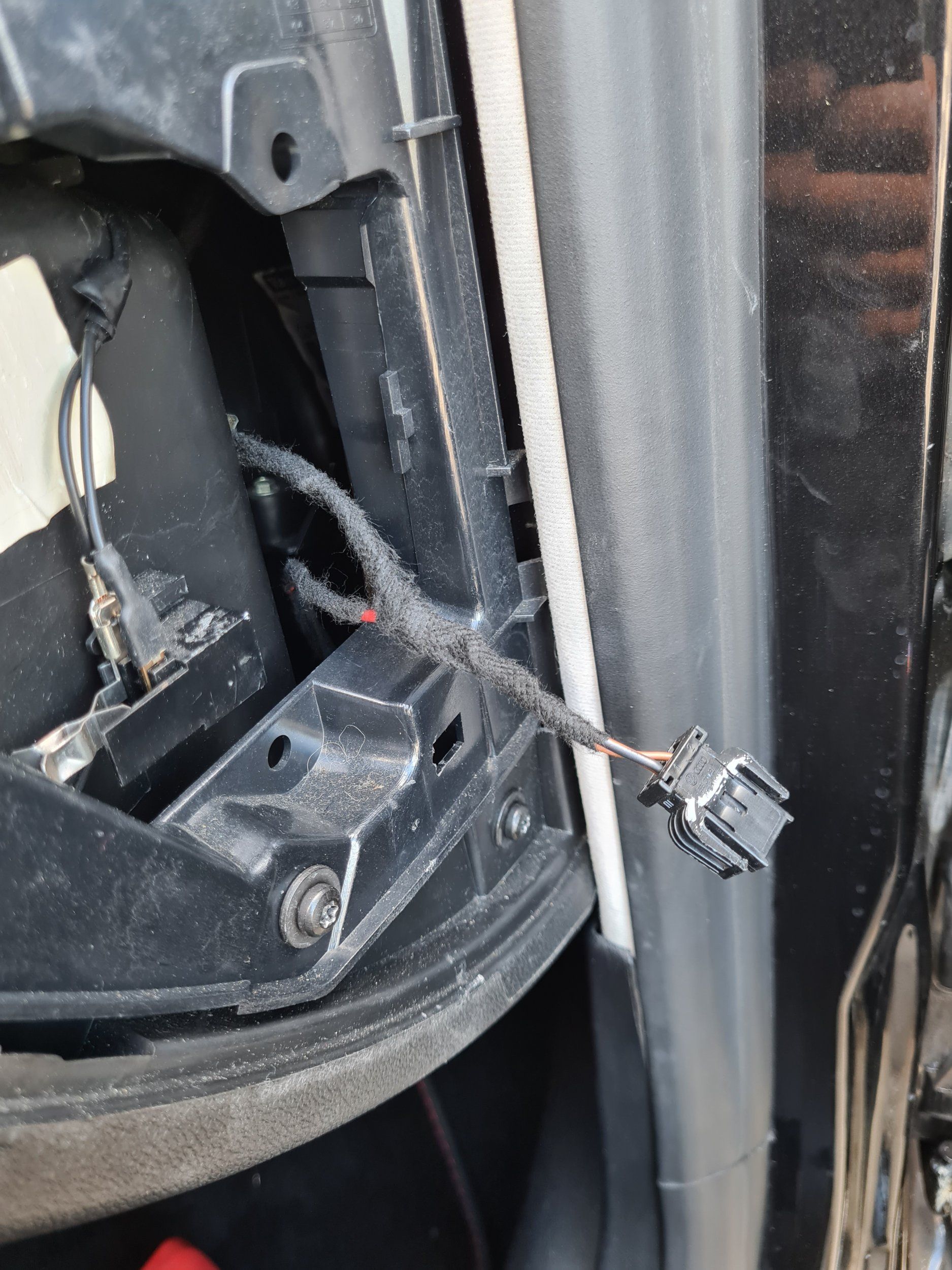

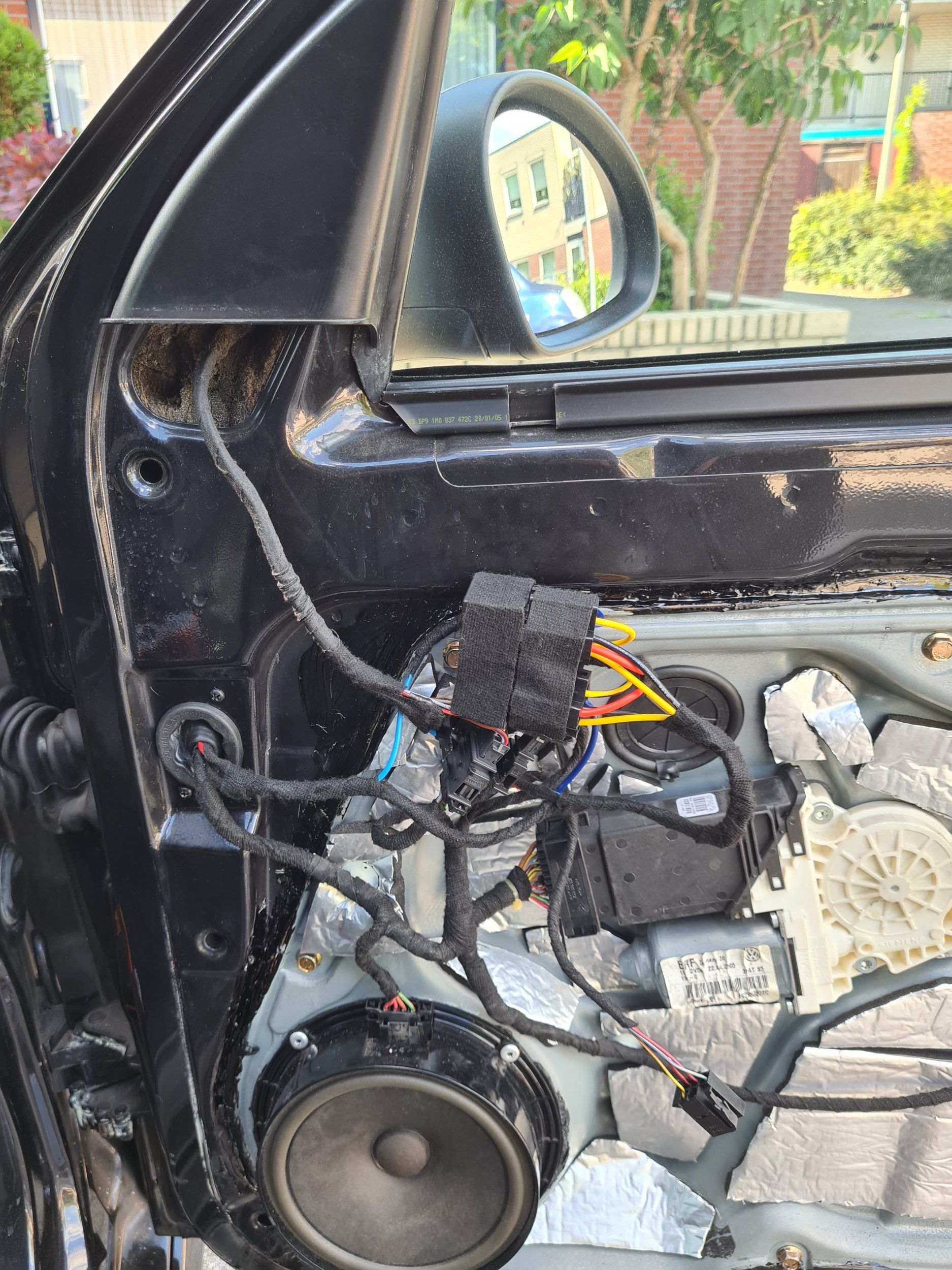

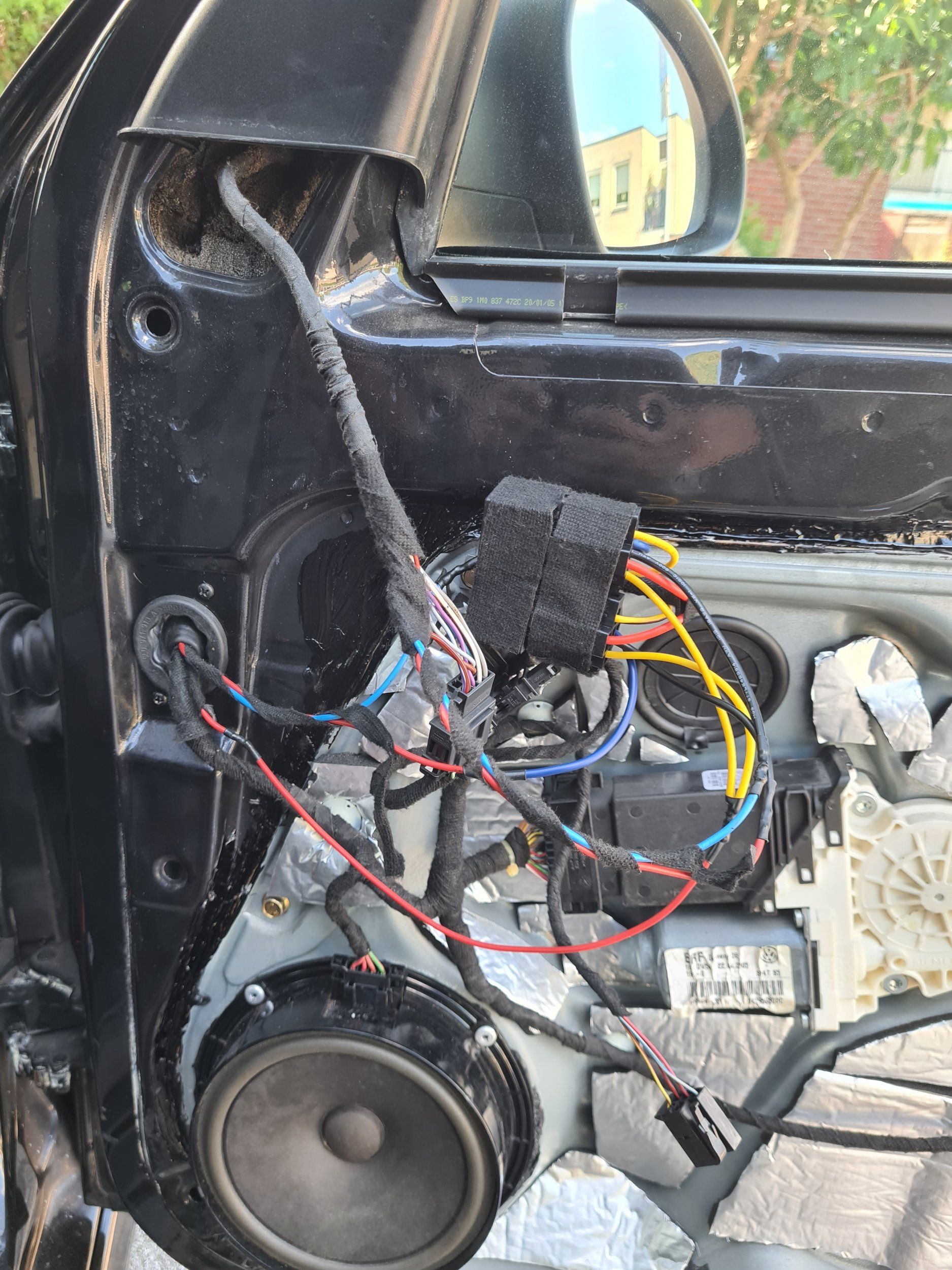

Got the relay but think the diagram is switched up.

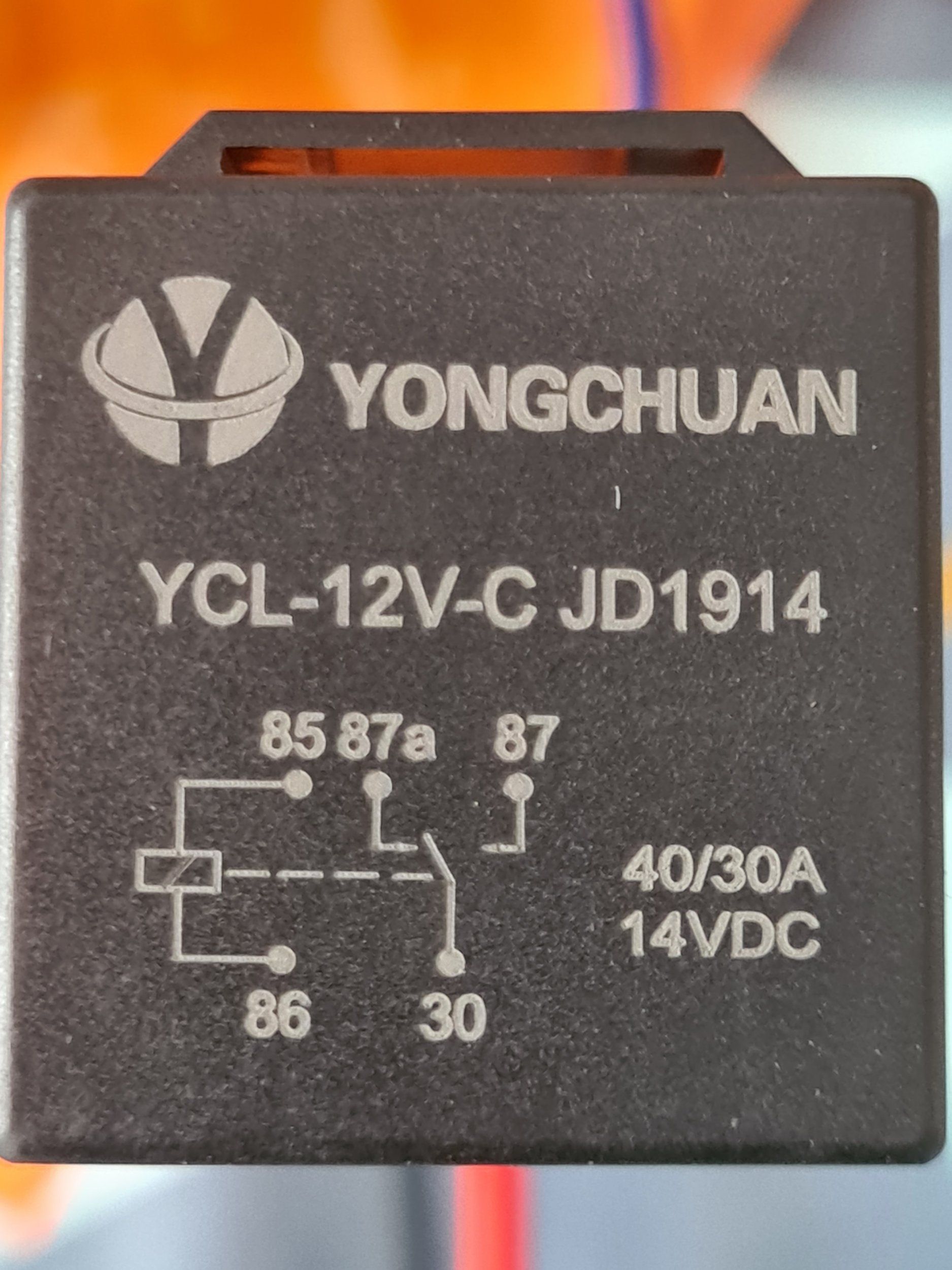

This says it sends power to 87A when 12v is supplied. But it doesn't

Anyway, forgot that it does not want 12v to go trough pin 30 though, otherwise the mirror would get constant 12v.

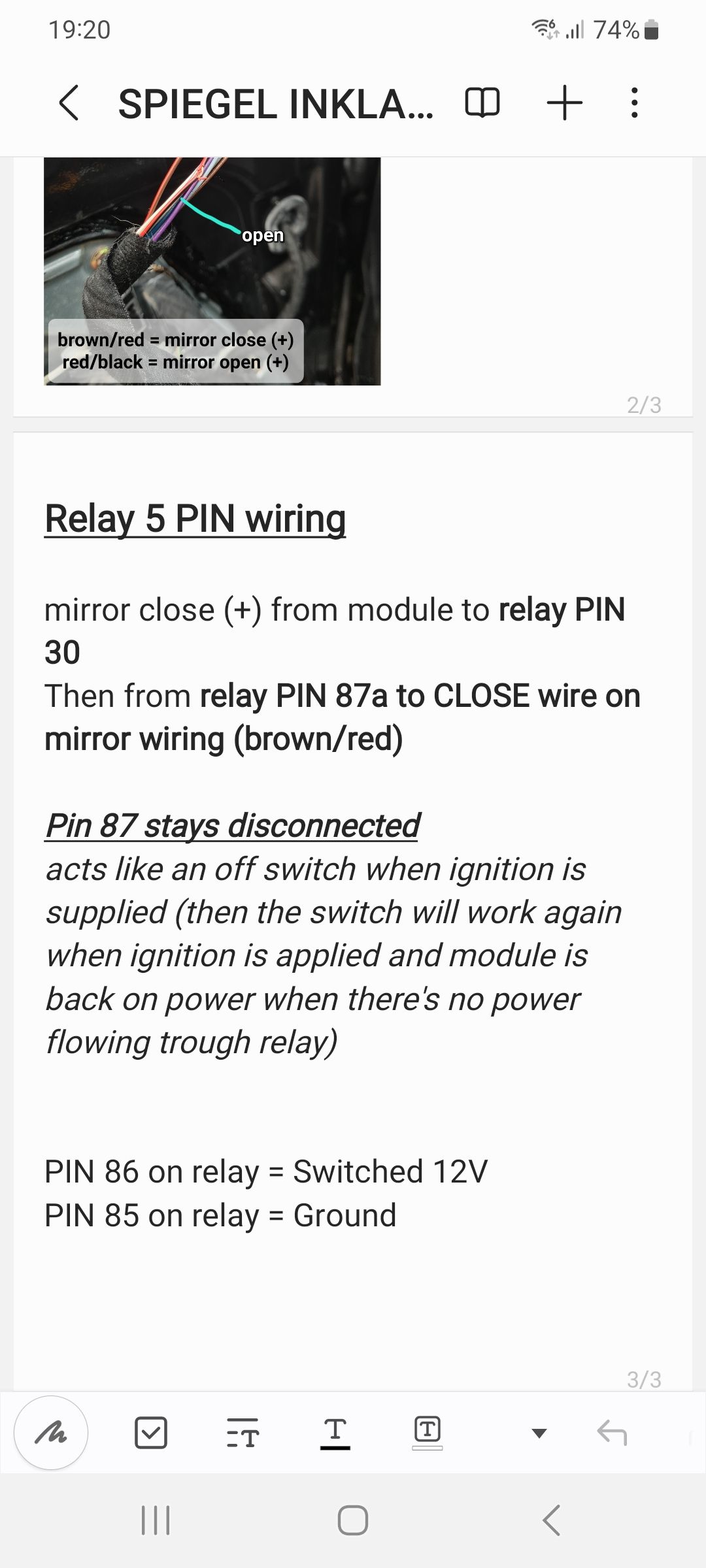

This is what I think what will work. (messy write up in notes but still have to wire it up and see)



[mty12345]

Sounds like a plan. Quite normal to find chinese componants with wrongly labeled diagram and terminals.. I spent ages troubleshooting a electronics project, only to find they'd labeled then connector wrong in the factory
