1.5 tsi, any progress?

Tester01

Active Member
Oct 24, 2022
125
18

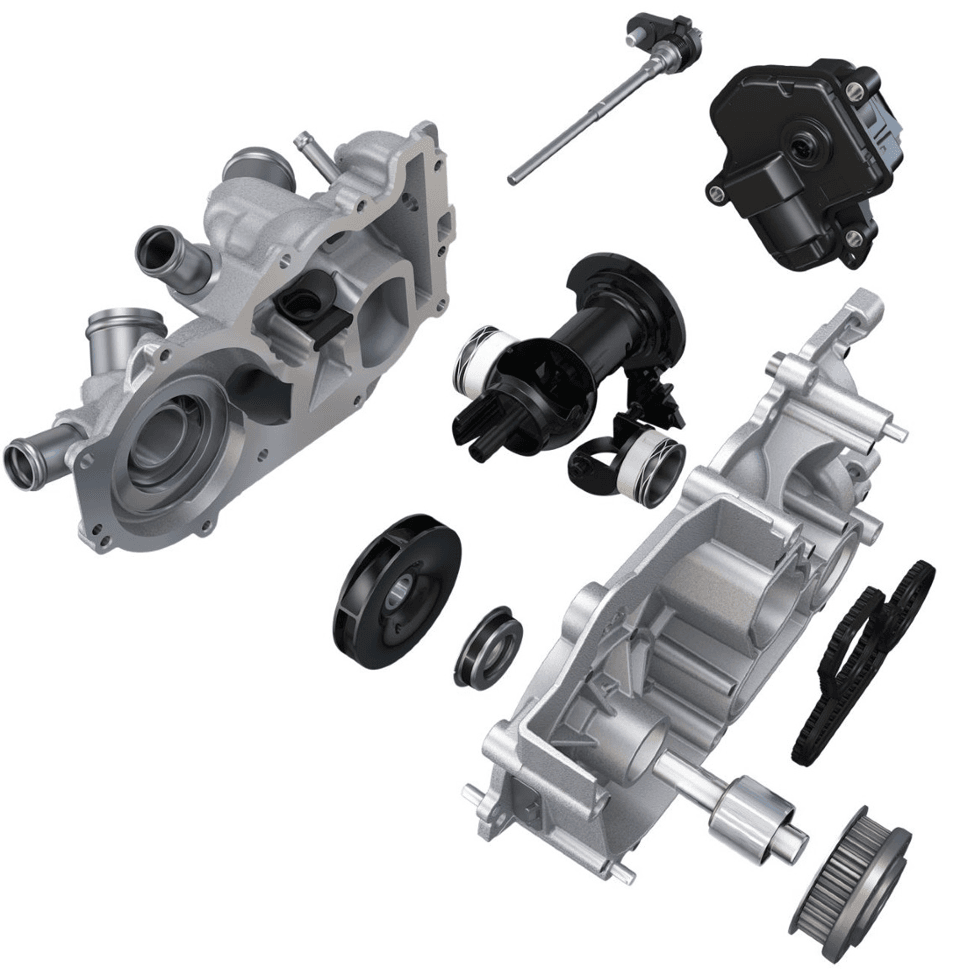

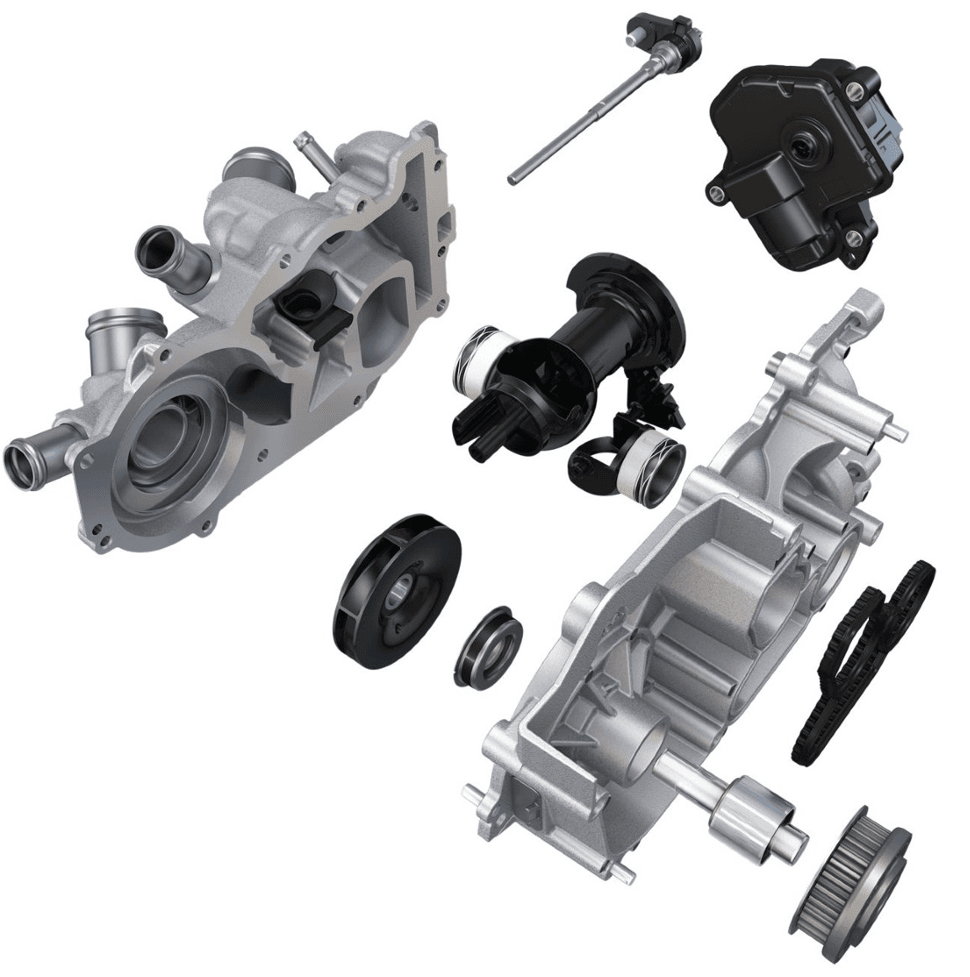

Found an exploded image of the 1.5tsi mechatronic thermostat/pump assembly:

View attachment 47513
Was reading my service manual yesterday unsure how easy the coolant sensors and thermostat for a wannabe mechanic like myself

But defo think there’s something weird with coolant that might be worth chasing. Will mention it when I take it to be serviced whether Seat will actually look into it not sure.
Guess have to try look further into it myself if they don’t.

What do you think of that coolant temp jumping to nearly 30c in less than minute of engine being on after being left overnight in the snow when it was 2c.
Is that to be expected?

But that mechanic I spoke to said based on that and things he’s encountered in the past could be causing issues.

As he said for him he’s seen similar issues on Leon’s and said things around coolant and thermostat play a part. He just wasn’t sure what sensor could be problematic as there’s several I believe

Last edited:

SuperV8

Active Member
May 30, 2019
1,716
821
Will track it later today.
When you say engine temp do you mean coolant temperatures or another sensor readings should be looking at

From memory when driving when I’ve last looked at coolant temps using obd I’ve seen it in the 90s go up to 110.

Just the radiator outlet temp always looks way out of wack in comparison and maybe why I’ve not heard the fans in a long time.

Funnily enough I had a mechanic out in January one of those mobile ones to see if they could shed any light on why fuels so poor.

It was a snowy day so outside temp was 2c. He plugged his diagnostic tool in and started the engine and within less than minute, coolant temps was showing at around 29c.

Which he said was suspicious and thought based on that one of the sensors could be giving false readings.

View attachment 47514

Would you agree with that being odd? I’d imagine the coolant temp would’ve been same as outside temp initially?

I would expect these two to be similar:
actual measured value and the specified value would probably be the 'target' value.



How long was your engine running at this point? as 88 seems low if you have been driving for a while.

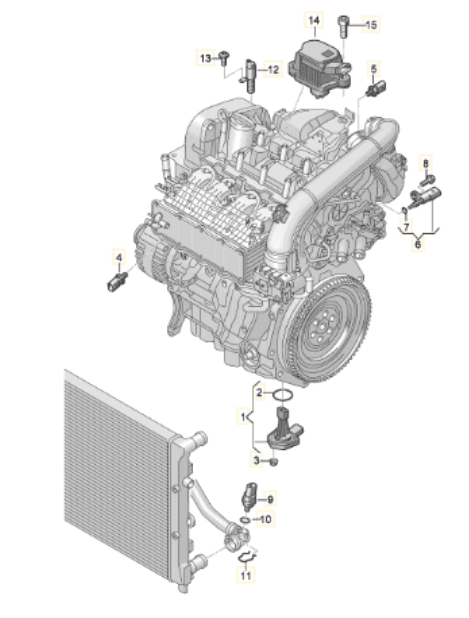

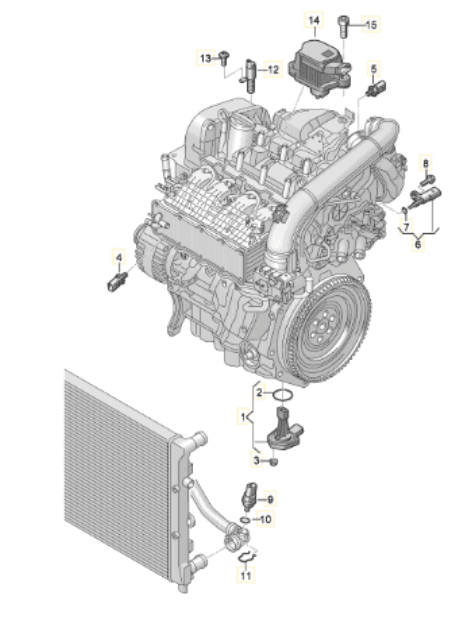

number 9 is your rad outlet temp sensor. 06A919501A
number 6 is your engine coolant temp sensor 03F919501B
Coolant pump/regulator 05E121111AB


SuperV8

Active Member
May 30, 2019
1,716
821
Both coolant temp sensors look like the have the same resistance/temp curves:
You could check their resistance with a DVM - and a thermometer to ensure its similar to below:

Temperature T(ºC)Resistance R(Ω)
-2013 - 15 k
-108.6 - 10.1 k
05.5 - 6.5 k
103 - 5 k
202 - 3 k
301.4 - 1.9 k
40900 - 1300.0
50750 - 900
60500 - 700
70380 - 460
80280 - 355
90200 - 270


Tester01

Active Member
Oct 24, 2022
125
18

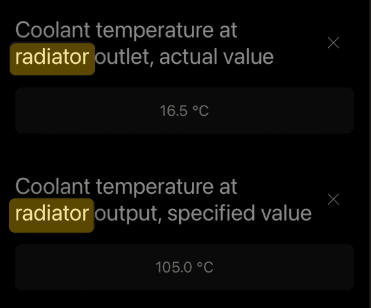

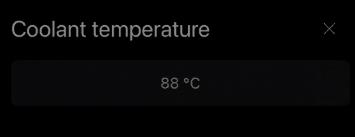

I would expect these two to be similar:
actual measured value and the specified value would probably be the 'target' value.
View attachment 47515

View attachment 47517
How long was your engine running at this point? as 88 seems low if you have been driving for a while.

number 9 is your rad outlet temp sensor. 06A919501A
number 6 is your engine coolant temp sensor 03F919501B
Coolant pump/regulator 05E121111AB
View attachment 47516
Not sure how long had my engine running it was an old screenshot I found from when I was monitoring coolant.

But I’ll go on a drive later down the motorway or something see if I gather some data.

really appreciate your help btw

To access the radiator and engine coolant sensor would I need to remove the front grill or radiator?

Just want to get to bottom of once and for all especially as it’s under the extended warranty until later this year.


DEAN0

Old Git
Feb 1, 2006
5,399
384
Preston - UK
Is that the same as the 1.4? So much plastic.
The EA888 2.0 engine also has a full plastic housing and it is very prone to cracking / leaking.

At around £700 a time ( fitted at an independant ) - or £1200 a time at a stealers - it is costly out of warranty.
You can get the parts for around £300 if you are capable with the spanners.

But VAG say it is not an issue and refuse to do anything about re-designing it.

  • Like
Reactions: Mr Pig

Tester01

Active Member
Oct 24, 2022
125
18
I would expect these two to be similar:
actual measured value and the specified value would probably be the 'target' value.
View attachment 47515

View attachment 47517
How long was your engine running at this point? as 88 seems low if you have been driving for a while.

number 9 is your rad outlet temp sensor. 06A919501A
number 6 is your engine coolant temp sensor 03F919501B
Coolant pump/regulator 05E121111AB
View attachment 47516
Set obd11 to record and chart a bunch of data across a 20 mile drive down mostly down the M60.

Which it was then when I went to save it...I pressed the wrong thing and cleared the chart.

Had it tracking coolant temp and oil temperature 😑

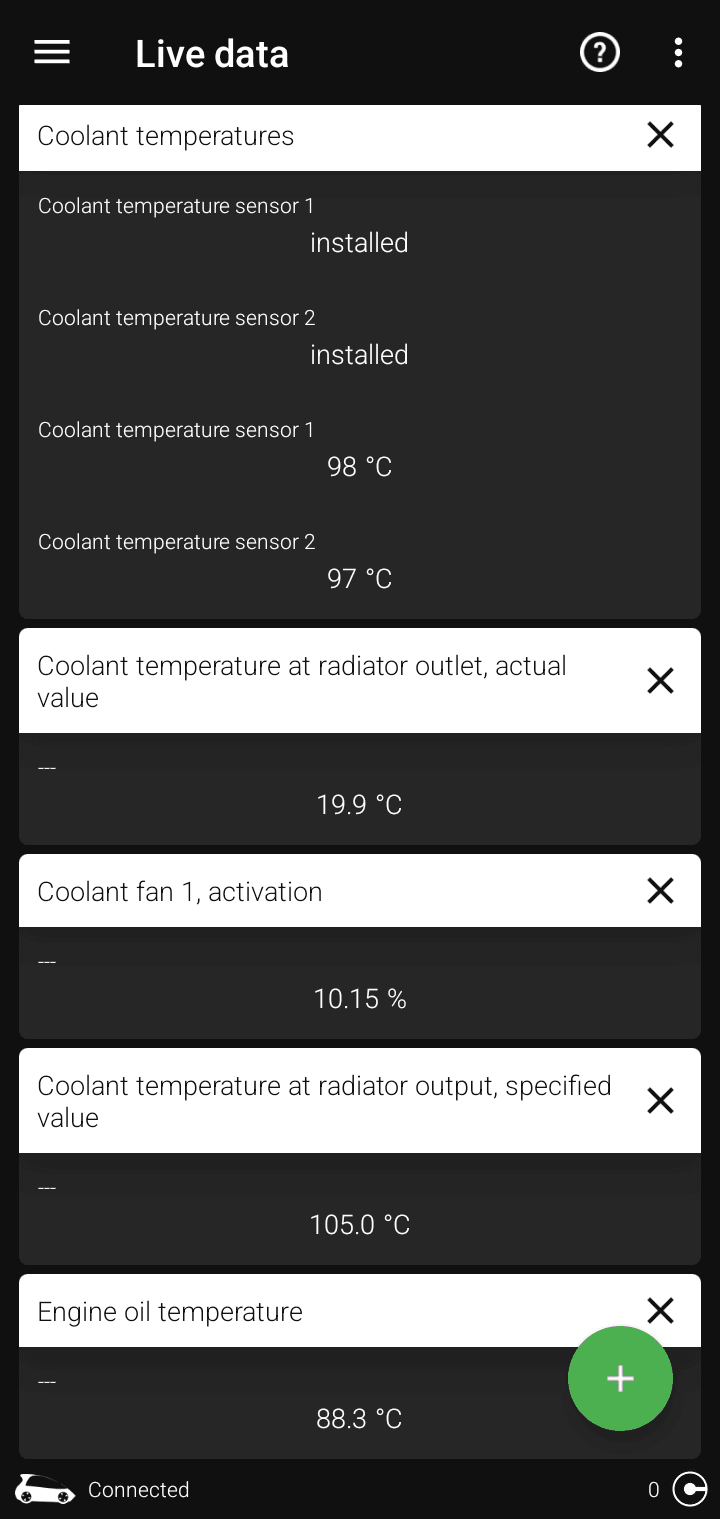

But here's what I managed to screenshot from live data a minute or two after I parked up.

Coolant when I checked live data initially was at around 103c.

Sadly don't know how much it fluctuated during the drive and how quickly it got to that temperature sadly.

Will try do another run after work tomorrow from cold start and this time chart some data.

Could also do a recording tomorrow on the way to work but mostly town driving

Can see the coolant at radiator is still low in comparison to coolant and specified


SuperV8

Active Member
May 30, 2019
1,716
821
Something is wrong.
After a 20 minute drive, rad outlet actual temp and rad outlet specified temp (target) should be quite close.
I would say, either the rad outlet sensor (or its wiring/connector) is 'miss behaving/faulty' or the thermostat/regulator is over cooling/faulty.

The rad outlet temp sensor should be an easy one to test.
Unplug the connector - put a DVM on the two pins and read the resistance - and measure the actual temp of the sensor/radiator outlet with a thermometer and check against the expected values I posted previously. Be good to do this at two or three temperatures.
If the resistance is in accordance with the expected resistance values - then you need to do some further electrical tests to check the wiring.

If the thermostat/regulator is working properly I would expect to see your engine temp quickly get upto temperature and stay there and not fluctuate too much.
If you see the coolant temp get upto 90-100, but then drop if you go on a fast road/motorway I would say your thermostat/regulator is faulty.

And - 88 seems a little low for oil temp after a 20 min drive - don't know what to expect on the 1.5tsi? quite often oil and coolant temps are similar as there are usually heat exchanges between oil and coolant systems.

  • Like
Reactions: Craig.

Tester01

Active Member
Oct 24, 2022
125
18
Something is wrong.
After a 20 minute drive, rad outlet actual temp and rad outlet specified temp (target) should be quite close.
I would say, either the rad outlet sensor (or its wiring/connector) is 'miss behaving/faulty' or the thermostat/regulator is over cooling/faulty.

The rad outlet temp sensor should be an easy one to test.
Unplug the connector - put a DVM on the two pins and read the resistance - and measure the actual temp of the sensor/radiator outlet with a thermometer and check against the expected values I posted previously. Be good to do this at two or three temperatures.
If the resistance is in accordance with the expected resistance values - then you need to do some further electrical tests to check the wiring.

If the thermostat/regulator is working properly I would expect to see your engine temp quickly get upto temperature and stay there and not fluctuate too much.
If you see the coolant temp get upto 90-100, but then drop if you go on a fast road/motorway I would say your thermostat/regulator is faulty.

And - 88 seems a little low for oil temp after a 20 min drive - don't know what to expect on the 1.5tsi? quite often oil and coolant temps are similar as there are usually heat exchanges between oil and coolant systems.
See if Ive got a voltmeter somewhere.
Will relook at the service manual for location of sensors

Wonder if it’s worth me also in the meantime seeing if there’s any air in the coolant system and trying to bleed any if there is.

I was thinking that about the oil seemed little on low side. Not sure what the typical time and temp it should be

Going to try get some data this weekend on a drive.

Didn’t end up taking car in yesterday as whoever booked it didn’t sort out a loan car to use whilst it was in annoyingly. Just hassle getting to and from Seat dealer so much rather have one.

Now going in next month but guess gives me more time to hopefully compile some data to present to them and get to bottom of issue.

Thinking to hopefully get the following data on a drive:
Coolant sensor 1 & 2
Coolant at radiator outlet actual and specified value
Oil temp
Ambient temp
Intake air temp
Speed - to check if I’m going faster and coolant temp drops like you said.
Coolant radiator fan % - 10.15% seems to be equal to no fan activity

Last edited:
  • Like
Reactions: SuperV8

Tester01

Active Member
Oct 24, 2022
125
18
Actually forgot I captured this on way back home from office on Tuesday evening.
Mostly city with a bit of spirited driving through during rush hour about 25 minutes of driving.
Roughly a 5mile journey from home to my office when im in.


AMFWbCPNX1s8RVmUvMLfPMAh

Chart looks a bit messy admittedly - probably best to keep it simple and not try and track so much data.
Have hidden Time, intake air and outside air from it.

View chart and the logs here - Can see things in more detail and hide/show specific fields.

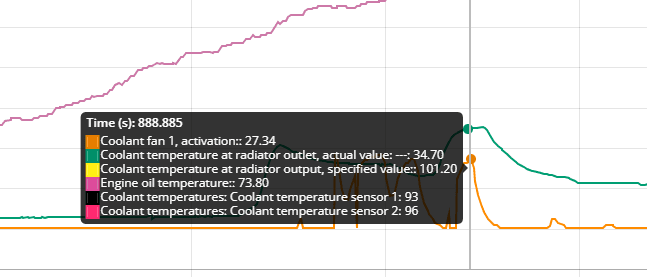

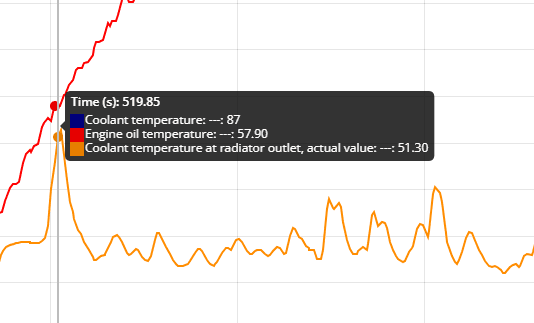

Looking at this snapshot can see the coolant fans did kick in briefly? Seems early though considering when coolant was at 100c+ it didnt come on but did when the coolant was reported 93 (Coolant sensor 1) and 96 (Coolant Sensor 2).
Coolant at radiator still doesn't get near the specified value, max it reached was about 40c.


Mr Pig

Active Member
Jun 17, 2015
2,809
1,026
The EA888 2.0 engine also has a full plastic housing and it is very prone to cracking / leaking.
Yeah, it's pathetic. I've been looking at Mk3 Audi TTs and it's not a case of if this housing is going to fail, just when. And VW have done nothing to address this issue. The new parts supplied today are the same as the ones that fail. What do they expect people to do? Other than not buy their cars.


RUM4MO

Active Member
Jun 4, 2008
8,016
1,087
South Scotland
I might just be imagining this, but is there not an aftermarket supplier of a more robust assembly that has less plastic in it - probably a performance orientated aftermarket specialist for this EA888 engine?


Mr Pig

Active Member
Jun 17, 2015
2,809
1,026
I might just be imagining this, but is there not an aftermarket supplier of a more robust assembly that has less plastic in it - probably a performance orientated aftermarket specialist for this EA888 engine?
I thought that but I've asked a performance specialist and he said no, it's just the plastic one. As well as the plastic cracking, it seems that the rubber seal fails too so it can feck up your life in multiple ways! And there is no rhyme or reason to it. You could have a car for years without issue or it could fail at 10k. Have to say it puts you off buying that engine, which is a shame as it seems very good otherwise.
