Where is Map sensor located seat ibiza 6j 1.6 tdi 2010

[arn35]

Hello,
I have been searching and googling for 6 hours now and it pisses me off, i cant find the map sensor.
Does anybody know where its located?
Br,



[Quadra840AV]

Manifold Absolute Pressure sensor... Give me a bit and I'll find an image.



[arn35]

Manifold Absolute Pressure sensor... Give me a bit and I'll find an image.

Yes that's what im looking for!



[arn35]

@Quadra840AV

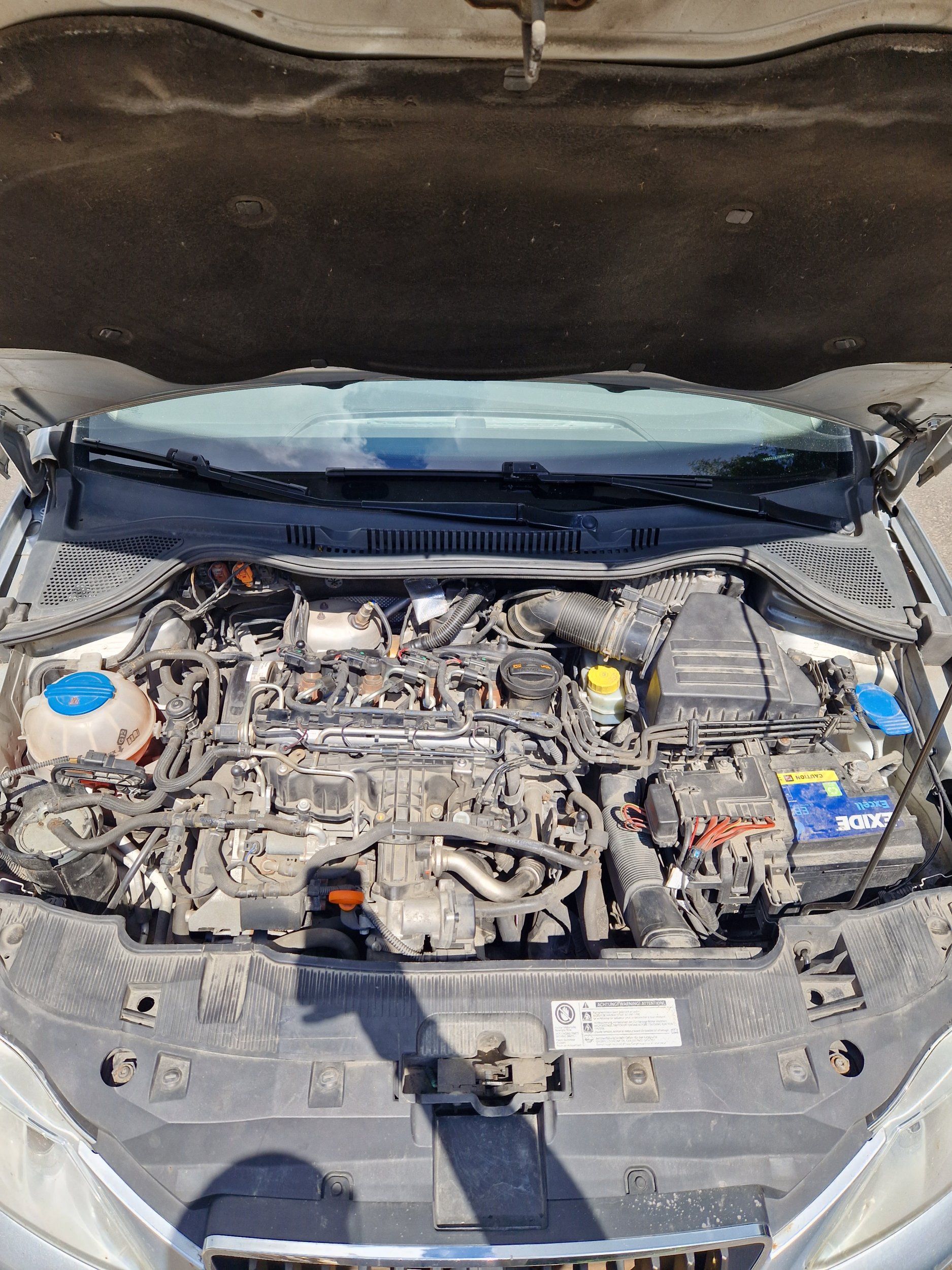

Picutre below is of my engine if its easier for you to just mark it and direct me where it is.
Br,



[arn35]

Im looking for the map sensor im getting error p023600 and p011300 whish both indicates on map sensor..



[arn35]

On my audi a4 b8 2.0tdi i can find it straight away and after googling the oem nr i ca see that it should fit my seat ibiza 1.6tdi 6j but it seems to be hidden somewhere. I will now lift the car up and see from below if i can find it, if i find it i will post it here for documentation or if you guys during the time know and can send me the location i would be gratefull.
It should be Oem 038906051C as i find on autodoc and other sites..



[Quadra840AV]

I'm still away from my computer with the workshop manual.
Something in my noggin is telling me front right. From underneath like a Polo.

I'll have a look when I get in.



[arn35]

I'm still away from my computer with the workshop manual.
Something in my noggin is telling me front right. From underneath like a Polo.

I'll have a look when I get in.

Ure right i found it after lifting the car and removing the plastic cover, if you have the car infront of you its left side cmose to bumper. My Phone is at the moment on charger 2% but i will try to take a picture later.
Problem is that pin 1 of 4 have cable damaged only isolation left on it. Tried to connect the ends but one of the end is sticking out of the connector like 3mm.



[Quadra840AV]

Ure right i found it after lifting the car and removing the plastic cover, if you have the car infront of you its left side cmose to bumper. My Phone is at the moment on charger 2% but i will try to take a picture later.
Problem is that pin 1 of 4 have cable damaged only isolation left on it. Tried to connect the ends but one of the end is sticking out of the connector like 3mm.

Glad you found it.
Hopefully the electrical connector won't be too much of a pain to fix.



[arn35]

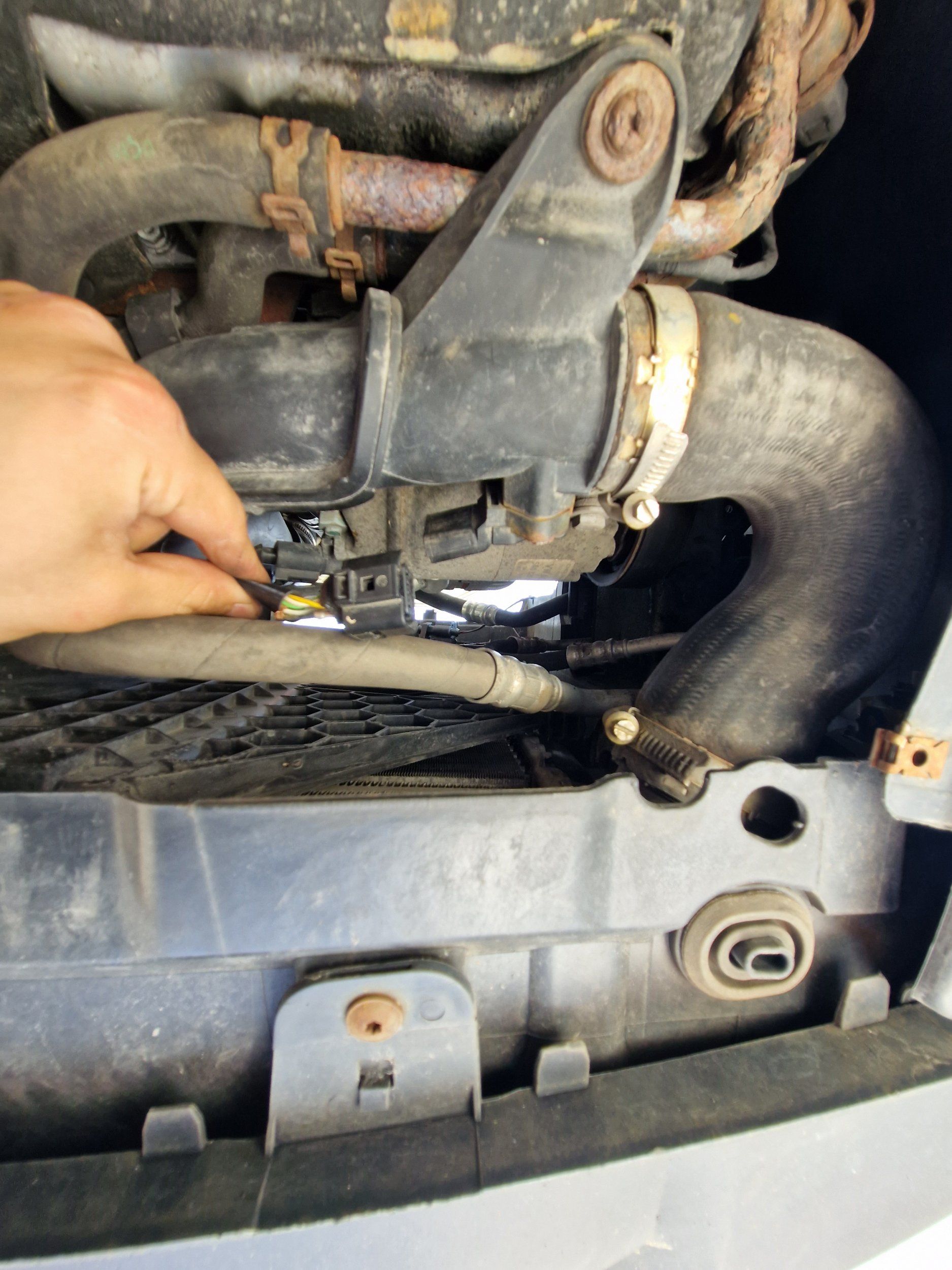

Here it is, fixed the cable but problem still remains. Took map sensor from my audi a4 b8 2.0tdi same oem and the car works as new. Now it remains to just order a new one.
Hope this will come handy to some one in future
Br from Yugoslavia



[Quadra840AV]

Good work! I'm sure this will help someone out
