Radio head unit?

[Carnivor]

Spot on.. the image is as looking at the terminals as shown
**maybe not see next post**


The blue would only there if you have a multichanger so it should be vacant

Ahh yes, i have an FR so im assuming that i have it for the AUX in then. thats why i have it



[leon1p]

Ah that sounds about right



[f0ggy]

Hi can anyone tell me the part number for the correct IceLink, i know the cradle is

ILVG1234UK

but im after the cable connection as I want to store it in the glovebox.

Many thanks



[gndjm23964]

http://uploads.simplyrc.com/new_leon_radio_removal.pdf
http://uploads.simplyrc.com/guide_radio_socket.jpg

Hopefully this is the same for your radio too Simon

Has the PDF been moved? The link appears to be broken.



[shuikit]

How did you update the firmwire on the Dension? Do you get track names on the head unit with the new firmware?



[Xe]

How did you update the firmwire on the Dension? Do you get track names on the head unit with the new firmware?

You upload the firmware to itunes --> iPod, play the playlist in the car, and it will update the firmware on the unit.



[Xe]

Has the PDF been moved? The link appears to be broken.

http://s188.photobucket.com/albums/z105/s602/Leon Tech Pics/
http://s188.photobucket.com/albums/...s/?action=view&current=guide_radio_socket.jpg
http://files-upload.com/files/491944/new_leon_radio_removal.pdf

Lucky for you I kept a copy of the PDF, also Leon1p still has all the pics online aswell



[leon1p]

Nice one XE,

Sorry we let the webspace die a death but I do have all the files etc which i'll try to get online in an organised fashion somewhere. Maybe they could be converted into help files on SCN?



[DanGB]

see my bluetooth fitting guide or satnav fitting guide on how to remove the headunit.



[gndjm23964]

http://s188.photobucket.com/albums/z105/s602/Leon Tech Pics/
http://s188.photobucket.com/albums/...s/?action=view&current=guide_radio_socket.jpg
http://files-upload.com/files/491944/new_leon_radio_removal.pdf

Lucky for you I kept a copy of the PDF, also Leon1p still has all the pics online aswell

Excellent! Thanks XE.



[shuikit]

Could you post a link to where I can download new Dension firmware please? I've had a look on the website, but couldn't find it anywhere! Thanks



[Xe]

I will post some links later tonight (if I remember). Its hidden away in the dension website, but I think I used firmware from some German website. But if you have the latest model should be no need to update firmware.



[shuikit]

Mine was put in by the dealer a year ago! Current firmware is 2.15 (I think), not sure how much difference there will be with the new one.



[AndyVTR]

I managed to get my HU out today, using the dvd box (xbox) method and some string handles. Works great. I too have black, brown & blue connectors plugged in. I didn't manage however to remove the whole quadlock connector. Couldn't see a clip. I still need to buy the correct cable for my Dension.

My current Dension cable is the more traditional bigger red socket though. I'll post pics tomorrow. Do I need a cable from this to the plug where my blue one is? Or could I go straight from the black Dension box to this blue socket?!?!

Have we confirmed the blue one is the AUX in? Anyway to keep both?

I've never used the Dension OS on mine but used the iPod interface. Is there any point in me upgrading my firmware?

Managed to find the link here:

http://support.dension.com/support-center/index.php?x=&mod_id=2&root=8&id=55
http://install.dension.com/Start_Update.mp3



[AndyVTR]

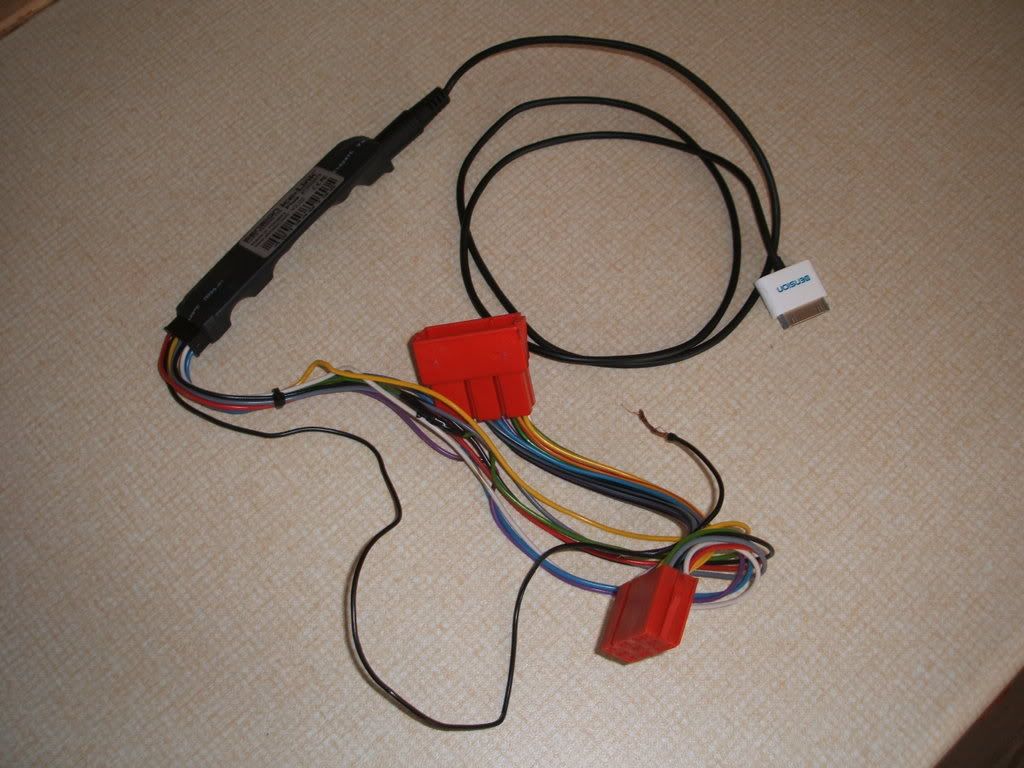

Mine is similar to this one here:

http://i18.photobucket.com/albums/b125/slimjimvw/DSCF2118.jpg

So I need either an adapter from the red bit to the blue socket or a whole new cable from the black box to the HU.



[AndyVTR]

Is that the quadlock release at the top of the blue bit?



[DanGB]

i dont anytihng about the icelink, but are you using the one from your old Leon which has a different connector?



[AndyVTR]

Yup yup yup. Either need an adapter or a new bit from the Dension box to the blue socket. Maybe.



[DanGB]

have you got a wiring diagram for the icelink wires?



[AndyVTR]

No just the pics I have. I'd have thought I could get a new bit from Dension or an adapter...
