Hey Guys - Just thought I would share my days work with you. Some of you may have seen it on Talkaudio but im currently working on a big bass install called Project Big Black But I also have company car, a Red Seat Leon FR - Project Little Red - The plan is to install the GZNW15 Sub and GZNW1.2500 amp I have from my sponsors in the boot - and run the uprated speakers in the front doors from a small Soundstream Granite amp 60.2 amp
I have a lot of pics to add in but cant do it as I dont have the 15 post limit (I didnt realise that the url rule applied to pictures as well sorry!)
I have a lot of pics to add in but cant do it as I dont have the 15 post limit (I didnt realise that the url rule applied to pictures as well sorry!)
Last edited by a moderator:
Poverty
Guest
thejoose
Guest
would be good to see another ice addict , heres what i did to mine :
I have jl audio C5-650 components in heavily dynamatted doors , profile ultra 2 amp running the front and a Alpine 600.1 running my focal 11" sub
sounds amazing off of my pioneer head unit oh and i still have seat bluetooth.
I have jl audio C5-650 components in heavily dynamatted doors , profile ultra 2 amp running the front and a Alpine 600.1 running my focal 11" sub
sounds amazing off of my pioneer head unit oh and i still have seat bluetooth.
iv just taken my 2 10" jl w7's with the jl 1000:1 in a 3/4" mdf box with a 1" mdf front baffle out of my boot so I can do a proper build and I swear the lighter boot has added and inch to my rear suspension height. It does drive alot better now though.
Would like to see how you go about changing the tweeters.
Would like to see how you go about changing the tweeters.
thejoose
Guest
Mine is not nearly as neat as that - im a basshead This is my company car but I have a giant project on the go which should be very loud!
Ice Addict is about right - been doing SPL competitions for 4 years
I'm think im going to regret showing you now - I think you guys are all going to be sq faeries! hehe
This is my company car but I have a giant project on the go which should be very loud! Ice Addict is about right - been doing SPL competitions for 4 years
I'm think im going to regret showing you now - I think you guys are all going to be sq faeries! hehe
Tweeters are a bitch mate , not the changing but taking the door cards on and off the window mechanism is part of the door cards , you need such pateints
Mine is not nearly as neat as that - im a basshead
Ice Addict is about right - been doing SPL competitions for 4 years
I'm think im going to regret showing you now - I think you guys are all going to be sq faeries! hehe
nothing wrong with us fairies mate lol , each to their own , i must admit it does sound good
Poverty
Guest
Mine is not nearly as neat as that - im a basshead
Ice Addict is about right - been doing SPL competitions for 4 years
I'm think im going to regret showing you now - I think you guys are all going to be sq faeries! hehe
oh ****, now I recognise your username.
Welcome to SCN mate!
I used to be a street basser till I got my K1 and went for speed!
Eventually I will be doing a small cheapish SQ install.
thejoose
Guest
Tweeters are a bitch mate , not the changing but taking the door cards on and off the window mechanism is part of the door cards , you need such pateints
nothing wrong with us fairies mate lol , each to their own , i must admit it does sound good
Hehe i know dude - there is always some friendly rivalry between bassheads and SQ guys - mean no offence by it
I recognise you as well dude - cheers for the welcome - im still a streetbasser - with an understanding boss!
Poverty
Guest
Haha well I cant wait to see what you do with the leon, your experience will hopefully make things easier for me when I come to do mine!
thejoose
Guest
thejoose
Guest
Managed to get up a few posts so here are the pics
Also if you interested in the big bass check out www.projectbigblack.co.uk
First off the pain in the ass for any big install - getting the power cable into the cabin. With some experience from my last company car install in an A3 Sportback i knew it would be a lot easier getting to the grommet with the battery out so out it came
Airbox undone to get access to the battery securing bolt
Battery out
The grommet on the bulkhead
I pushed a coat hanger through from the other side and taped the 0awg to it then with the help of a squirt of wd40 i pulled it back through

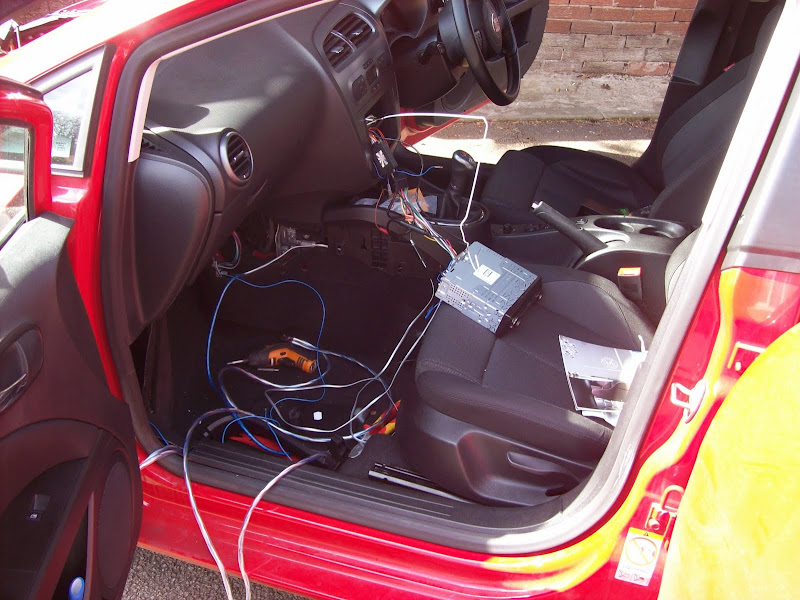

And into the passenger foot well
Battery back in and 200amp Tsunami circuit breaker installed
Ran all of the cables needed to the boot - these included remote, signal, speaker and power plus epicenter remote
Also if you interested in the big bass check out www.projectbigblack.co.uk
First off the pain in the ass for any big install - getting the power cable into the cabin. With some experience from my last company car install in an A3 Sportback i knew it would be a lot easier getting to the grommet with the battery out so out it came
Airbox undone to get access to the battery securing bolt
Battery out
The grommet on the bulkhead
I pushed a coat hanger through from the other side and taped the 0awg to it then with the help of a squirt of wd40 i pulled it back through
And into the passenger foot well
Battery back in and 200amp Tsunami circuit breaker installed
Ran all of the cables needed to the boot - these included remote, signal, speaker and power plus epicenter remote
thejoose
Guest

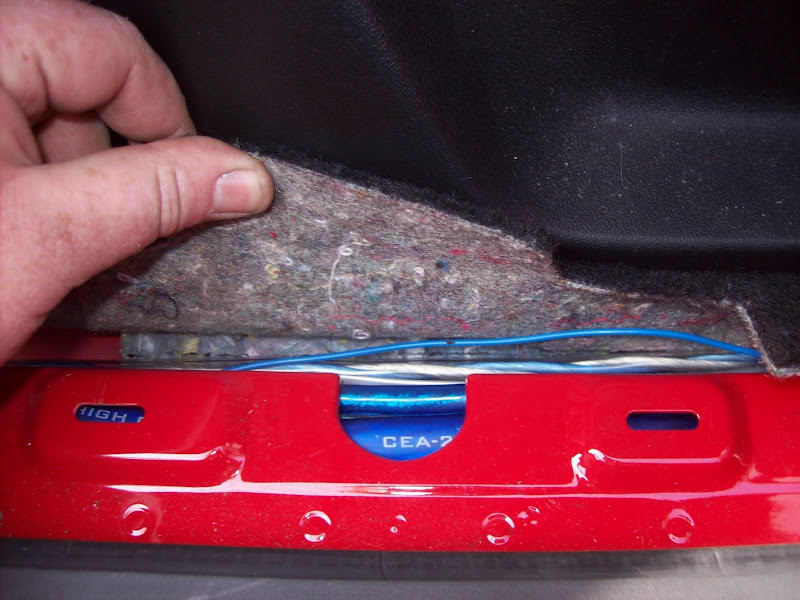

Popped the trim off along the sill and tucked it all into it
Once ran to the front I had to get the signal and speaker cables behind the dash - Rather than running speaker cables into the doors i just tapped into the iso loom behind the HU and connected the speaker cables from the amp to them - using the standard loom in the car to take the power to the doors - not something i would recommend for high power installs but the Granite amp I'm using is only 2x30wrms.
Trim back in and all tidy
Next job was to sort out an earth in the boot
Once ran to the front I had to get the signal and speaker cables behind the dash - Rather than running speaker cables into the doors i just tapped into the iso loom behind the HU and connected the speaker cables from the amp to them - using the standard loom in the car to take the power to the doors - not something i would recommend for high power installs but the Granite amp I'm using is only 2x30wrms.
Trim back in and all tidy
Next job was to sort out an earth in the boot
thejoose
Guest
Managed to find one behind the boot trim - where the luggage strap fasteners bolt to - its hidden right away so couldn't get a pic
Last night I spent ages working out how to mount all the bits on a removable board - this is what I came up with
Which of course didnt fit! so i pulled off the small amp and the epic and centred the sub amp - the ground zero fuse holder you can see on the bottom right actually comes with the amp - a nice feature.
Moving the epic and granite amp to the back of the box

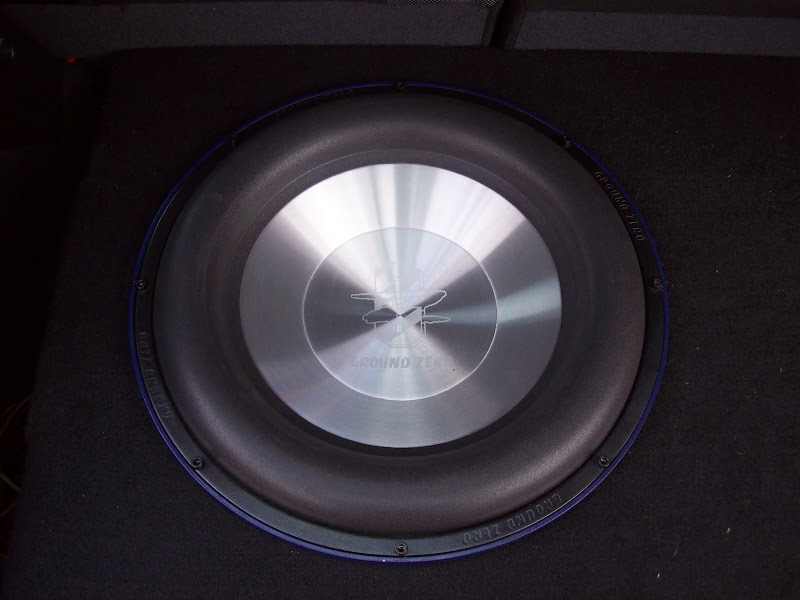

Sub mounted - the Nuclear subs come with a nifty metal trim ring and massive Allen headed black screws - another nice little feature
And everything all in and good to go
Needs a little bit of setting up but I have a lot of driving to do this week so will let you know my thought on the set up soon
Last night I spent ages working out how to mount all the bits on a removable board - this is what I came up with
Which of course didnt fit! so i pulled off the small amp and the epic and centred the sub amp - the ground zero fuse holder you can see on the bottom right actually comes with the amp - a nice feature.
Moving the epic and granite amp to the back of the box
Sub mounted - the Nuclear subs come with a nifty metal trim ring and massive Allen headed black screws - another nice little feature
And everything all in and good to go
Needs a little bit of setting up but I have a lot of driving to do this week so will let you know my thought on the set up soon
thejoose
Guest
looks good buddy ,
i hope you have a can of tyre foam somewhere handy
Having made the mistake in the past of not being able move a box to get to the spare tyre this one is pretty easy to move up on to the dropped back seats to gain access to the spare wheel
